Twister TW-685-5A
Category: CNC 5 Axis Machining Center
Twister TW-685-5A Documents

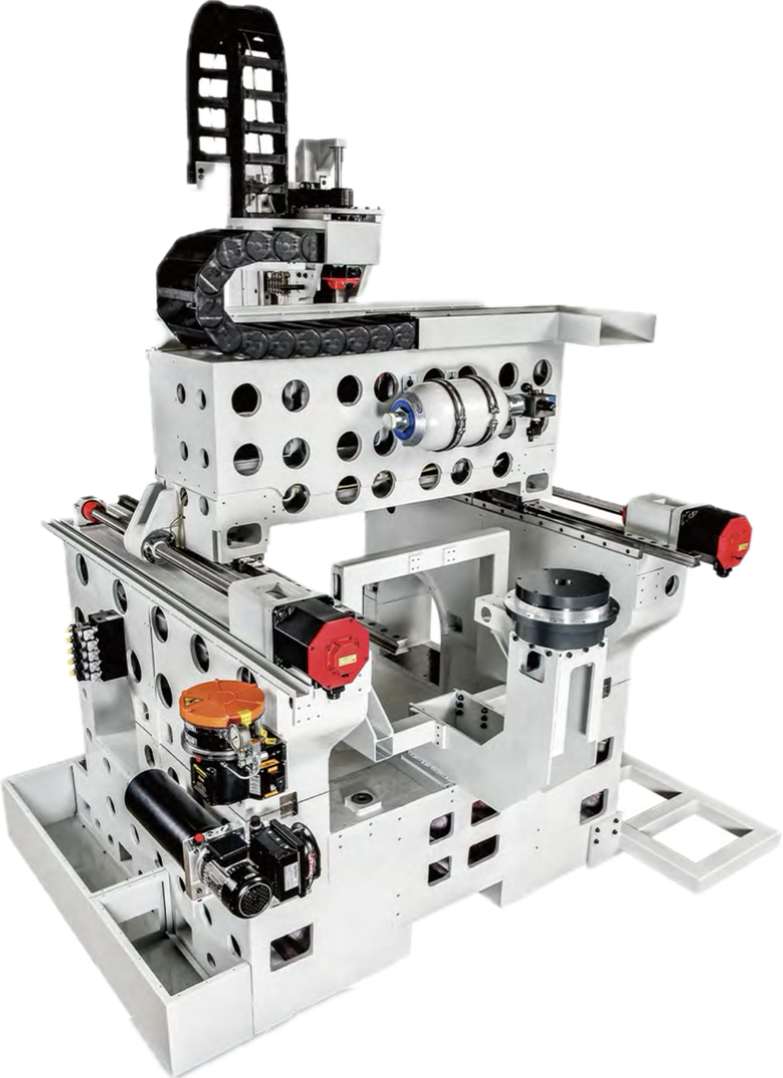

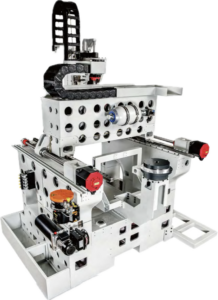

Rigid Construction
- All major parts were manufactured with Meehanite cast iron for high tensile structure and long term wear resistance.
- Twister series model features U-shaped base, and equipped with dual-supported A/C tilting & rotary table, high speed built-in spindle, cross-roller type linear guides, and precise optical scales
- Fixture and workpieces can be easily hoisted onto the table with a crane while the roof cover is opened
- High precision and super rigid linear guides on all 3 axes give longer sustaining accuracy and long service life. All 3 linear axes are located on top for dynamic performance independent of table loading.
- A & C tilting/rotary axes are equipped with high res. rotary optical encoders.
- Built-in spindle is an essential part of rigidity and excellence of performance.
- Fixture and workpieces can be easily hoisted onto the table with a crane while the roof cover is opened.
- Features a proprietary tool magazine to minimize the machine footprint while maximizing the working area
- ATC and tool magazine are installed behind the machining area to keep the chip and dust away.
| Specifications | |
|---|---|
| Travel X Axis | (650 mm) 25.59" |
| Travel Y Axis | (820 mm) 82.28" |
| Travel Z Axis | (550 mm) 21.65" |
| A Axis Tilting | -120~ +100 |
| C Axis Rotating | 360ยบ |
| Distance from Spindle Nose to Table | (125~675 mm) 4.92"~26.57" |
| Table Dimension | (650 mm) 25.59" |
| Maximum Loading | (750 Kg) 1650 lbs |
| Spindle Taper | CAT 40 |
| Spindle Speed | 12000 RPM |
| Spindle Motor | (11 / 18.5Kw) 14 / 25 HP Low (15 / 26Kw) 20 / 35 HP High |
| Rapid Traverse X, Y | (36,000 mm/min) 1417ipm |
| Cutting Feed Rate | (10,000 mm/min) 393ipm |
| Magazine Capacity | 30T |
| Maximum Tool Dia. | (80 mm) 3.14" with adjacent tool (120 mm) 4.72" without adjacent tool |
| Maximum Tool Length | (300 mm) 11.8" |
| Maximum Tool Weight | (7 Kg) 15.4 lbs |
| Floor Space L x W x H | (2,600 x 4,508 x 3,432 mm) |
| Power Requirement | 220V, 3 Phase, 60Hz, 40KVA, 100Amp |
| Machine Weight | (10,000 Kg) 22046.23 lbs |
All Specification are subject to change without prior notice
| Standard Accessories | Optional Accessories |
|---|---|
| Fanuc 31i MB5 | Built-in spindle 15,000 / 18,000 rpm |
| Arm Type 30T tool changer | Chain Type 40T or 60T ATC |
| 12,000 RPM Built-in Spindle | Oil skimmer |
| 2 MB Memory | Coolant through spindle system, |
| PCMCIA Slot for Memory Expansion | Automatic tool length measuring devic |
| Spindle Air Blast & Cutting Air Blast | Automatic workpiece measuring device |
| Auto Lubrication System | Oil mist collection unit |
| Heat Exchanger for Electrical Cabinet | Rotating & tilting center point calibration kit |
| Hand Held Coolant & Air Nozzle | |
| Fanuc & Machine Manuals | |
| Spindle Oil Refrigeration Unit | |
| Chain Type Chip Conveyor With Cart | |
| Optical scales For X,Y Z Axis | |
| Ring-type Encoder for A and C Axis |
