VE-1500L3
Category: CNC Vertical Machining Center
VE-1500L3 Documents

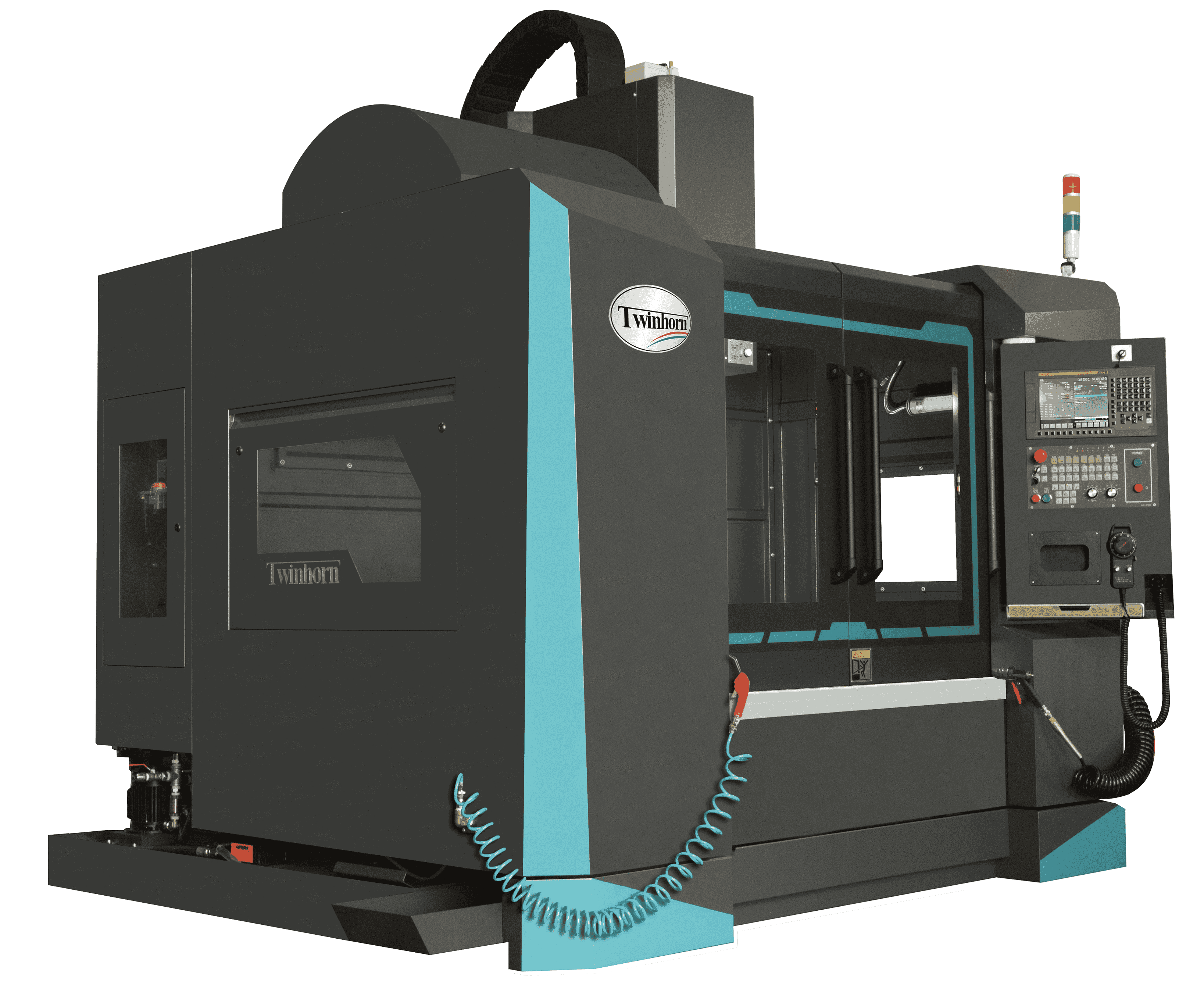

Bringing the most flexible & most competitive vertical Machining Center of Twinhorn to a broader range of machining applications, from prototype to production, from entry level to complicated applications, most flexible & affordable machining solution
Rigid Construction
- All major parts were manufactured with Meehanite cast iron for high tensile structure and long term wear resistance.
- The ruggedly constructed base features uniform load distribution and maximum stability, which machine accuracy is not affected by floor foundation or any minor leveling variation.
- High precision and super rigid linear guides on all 3 axes give longer sustaining accuracy and long service life.
- Z-axis is counter-weight balanced for extremely smooth movement.
- Pre-tensioned, dual supported high precision ball screws on all three axes are driven by direct-coupled servo motors to provide stiffness, rigidity for all kinds of machining applications.
| Specification | |
|---|---|
| Travel X Axis | (1500mm) 59" |
| Travel Y Axis | (510mm) 20" |
| Travel Z Axis | (510mm) 20" |
| Distance from Spindle to Column | (627mm) 24.68" |
| Distance from Spindle Nose to Table | (120-630mm) 4.72" - 24.8" |
| Table Dimension (Length x Width) | (1570x500mm) 61.81" 19.68" |
| Maximum Loading | (600Kg) 1,320 lb |
| T-Slot Width | (18mm) 0.71" |
| Spindle Taper | CAT-40 |
| Spindle Motor | (7.5/11KW) 10/15HP |
| Spindle Speed (RPM) | 8000 (std.) 12000 (Opt.) |
| Rapid Traverse X, Y | (30000mm/min) 1,181ipm |
| Rapid Traverse Z | (24000mm/min) 944ipm |
| Cutting Feed Rate | (10000mm/min) 394ipm |
| Tool Selection | Shortest Path, Bi-Direction random type |
| Magazine Capacity | Arm Type 24 |
| Maximum Tool Dia. | (80mm) 3.14" |
| Maximum Tool Length | (300mm) 11.81" |
| Maximum Tool Weight | (7.0Kg) 15.4 lb |
| Floor Space L x W x H | (4200x2600x2600mm) 165"x102"x102" |
| Power Requirement | 220V, 3 Phase, 60Hz, 30KVA, 75Amp |
| Machine Weight | (6600Kg) 14,550 lb |
All Specification are subject to change without prior notice
| Standard Accessories | Optional Accessories |
|---|---|
| Fanuc Oi-MF Plus, 10.4" Color LCD | Spindle Speed 12000RPM |
| 2 MB Memory | Spindle Oil Refrigeration Unit |
| PCMCIA Slot for Memory Expansion | Spindle Motor 20 HP |
| High Precision Linear Guideways | Data Server 2 GB (DNC) |
| Spindle Air Blast & Cutting Air Blast | Chain Type Chip Conveyor & Cart |
| Spindle Air Curtain | Coolant Through Spindle 300PSI Pump |
| Arm Type 24 Tool ATC | High Pressure Coolant System |
| Auto Lubrication System | Chip Flushing System |
| 4th Axis Interface Cable Ready | ZF Gear Box with 20HP Motor |
| Hand Held Coolant & Air Nozzle | 4th Axis Complete Tanshing VRNC-210 |
| Fanuc & Machine Manual | Auto Tool Measuring System |
