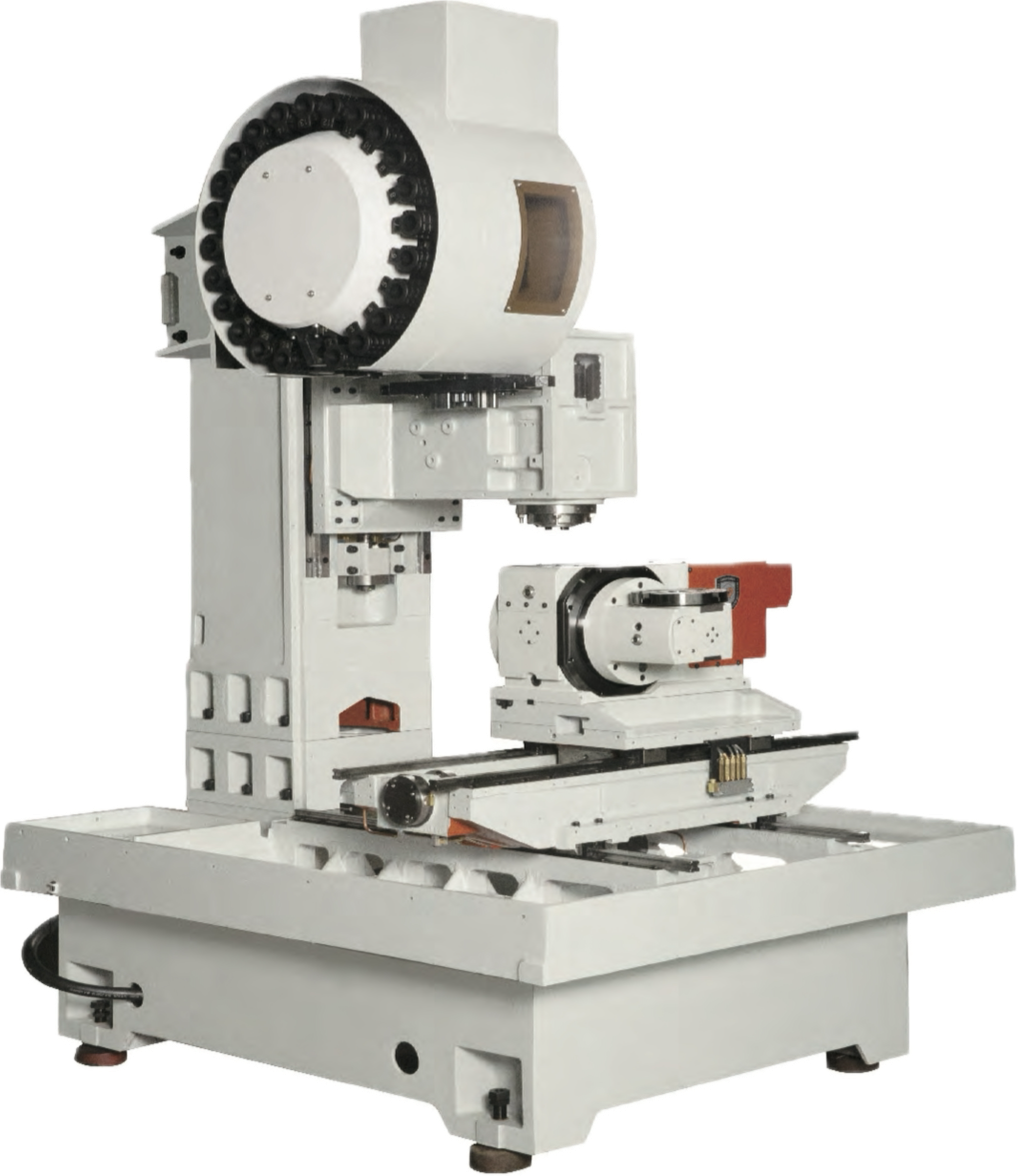

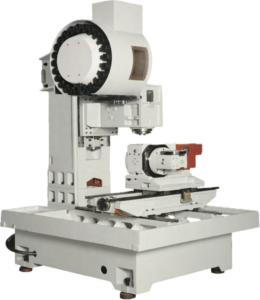

VF-500-5A
Category: CNC 5 Axis Machining Center
VF-500-5A Documents
Object oriented design & equipped for 4C industries. 12000 Rpm (optional 20,000 RPM) inline direct-drive spindle, 1417 ipm rapid travel on X, Y and Z axis, 1 second T-T and 2.5 second C-C High capacity side mount double arm tool changer, 6000 Rpm rigid tapping ability. Rigid Construction
- All major parts are built with certified Meehanite cast iron, featuring high tensile, superior vibration dampening and long term wearing resistance.
- 3D finite element analysis is utilized in casting process to provide optimized thermal stability and best dampening ability during high speed machining.
- Each axis equipped with C3 grade Ø32mm pre-tensioned ballscrews.
- High performance, ultra low momentum servo motor on Z axis provides best accuracy and performance during high speed machining.
- High precision linear guide way on all 3 axes.
| Specifications | |
|---|---|
| Travel X Axis | (500 mm) 19.6" |
| Travel Y Axis | (380 mm) 14.96" |
| Travel Z Axis | (400 mm) 15.74" |
| B Axis Tilting | -20º~ +115º |
| C Axis Rotating | 360º |
| Distance from Spindle Nose to Table | (80~480mm) 3.14" ~18.89" |
| Table Dimension | (170 mm) 6.69" |
| Maximum Loading | (30 Kg) 66 lbs |
| Spindle Taper | CAT 30 |
| Spindle Speed | 12,000 RPM |
| Spindle Motor | Direct 3.7 / 5.6 kW |
| Rapid Traverse X, Y | (36,000mm/min) 1417ipm |
| Cutting Feed Rate | (10,000 mm/min) 393ipm |
| Magazine Capacity | 20T |
| Maximum Tool Dia. | (60 mm) 2.36" with adjacent tool (100 mm) 3.93" without adjacent tool |
| Maximum Tool Length | (200 mm) 7.87" |
| Maximum Tool Weight | (3 Kg) |
| Floor Space L x W x H | (1624 x 2250 x 2530 mm) 63.9" x 88.58" x 92.51" |
| Power Requirement | 220V, 3 Phase, 60Hz, 15KVA, 60Amp |
| Machine Weight | (2800 Kg) 6172 lbs |
All Specification are subject to change without prior notice
| Standard Accessories | Optional Accessories |
|---|---|
| Fanuc 31i MB5 | Spindle Speed 20000 RPM |
| 2 MB Memory | Dual pallet design |
| Spindle Air Blast & Cutting Air Blast | Data Server 2 GB (DNC) |
| USB and PCMCIA Slot for Memory Expansion | Automatic tool length measuring device |
| Chip Flush System | Coolant Through Spindle |
| Heat Exchanger for Electrical Cabinet | High Pressure Coolant System |
| Fanuc & Machine Manual | Rotating & tilting center point calibration kit |
| Auto Lubrication System | Oil mist collection unit |
| Spindle Oil Refrigeration Unit | Automatic workpiece measuring device |
| Arm Type 20T tool changer | Chain Type Chip Conveyor With Cart |
| Hand Held Coolant & Air Nozzle | |
