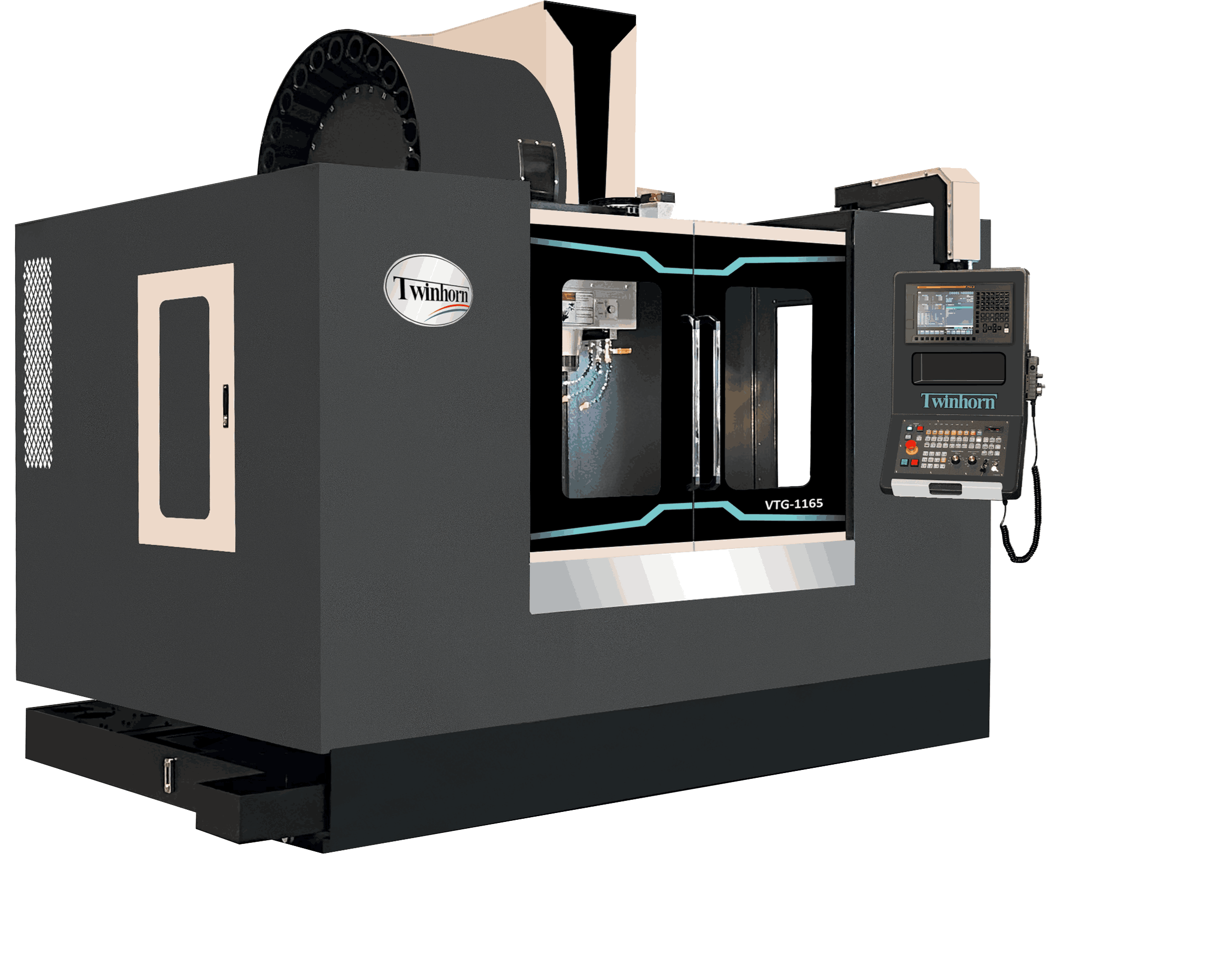

VTG-1165
Category: CNC Vertical Machining Center
VTG-1165 Documents
High Rigidity High performance design
- The mechanical casting structure is the basis of machine precision. In order to ensure the long-term precision of the machinery, the Meehannite main structure castings are all made using SNK Five-faced machines, and using 3D measuring process to do precision testing.
- Large span inverted Y shaped column ensure high rigidity, light weight, anti-sagging spindle head.
- Z axis box way design offers super strong rigidity, stable high precision, and provides more powerful high quality cutting ability.
- The Gear head adopts a 2-stage transmission gear made of chrome-molybdenum alloy steel which is then heat treated and precision ground making it more suitable for low speed heavy duty cutting. (optional #40)
- The spindle adopts a floating tooling mechanism to ensure long term accuracy and life of the spindle bearings.
| Specification | |
|---|---|
| Travel X Axis | (1150mm) 45.27" |
| Travel Y Axis | (650mm) 25.59" |
| Travel Z Axis | (620mm) 24.40" |
| Distance from Spindle to Column | (765mm) 30.11" |
| Distance from Spindle Nose to Table | (100-720mm) 3.93" - 28.34" |
| Table Dimension (Length x Width) | (1250 x 650mm) 49.21" x 25.59" |
| Maximum Loading | (700Kg) 1534 lb |
| T-Slot Width | (18mm) 0.71" |
| Spindle Taper | CAT-50 OPT CAT-40 |
| Spindle Motor | (11/15KW) 15/20HP |
| Spindle Speed (RPM) | L-Gear 1000 H-Gear 6000 |
| Rapid Traverse X, Y | (24000mm/min) 944ipm |
| Rapid Traverse Z | (20000mm/min) 787ipm |
| Cutting Feed Rate | (10000mm/min) 393ipm |
| Tool Selection | Shortest Path, Bi-Direction random type |
| Magazine Capacity | Arm Type 32 |
| Maximum Tool Dia. #40/#50 | (80mm/127mm) 3.14"/5" |
| Maximum Tool Length #40/#50 | (300mm/350mm) 11.81"/13.77" |
| Maximum Tool Weight #40/#50 | (7.0Kg/ 15Kg) 15.4 lbs/33lbs |
| Floor Space L x W x H | (3254mm x 2245mm x 2767mm) 128.11" x 87.48" x 108.93" |
| Power Requirement | 220V, 3 Phase, 60Hz, 30KVA, 75Amp |
| Machine Weight | (7000Kg) 15,432 lb |
All Specification are subject to change without prior notice
| Standard Accessories | Optional Accessories |
|---|---|
| #50 Spindle Gear Head with Hi-Lo Gear | Chip Flush System |
| Spindle Oil Refrigeration Unit | Chain Type Chip Conveyor & Cart |
| Fanuc Oi-MF plus, 10.4" Color LCD | Coolant Through Spindle 300PSI Pump |
| 2 MB Memory | High Pressure Coolant System |
| PCMCIA Slot for Memory Expansion | Z Axis Linear Roller (VTG-1165L3) |
| Hardened Ground Box Ways Z Axis | 4th Axis Complete |
| Super Rigid High Precision Linear Roller X & Y Axis | Chip Flush System |
| Spindle Air Blast & Cutting Air Blast | Auto Tool Measuring system |
| Arm Type 32 Tool ATC | Data Server 2GB |
| Auto Lubrication System | Fanuc 31i |
| 4th Axis Interface Cable Ready | X Axis travel 1300mm(VTG-1365L), 1500mm(VTG-1565L) |
| Hand Held Coolant & Air Nozzle | |
| Fanuc & Machine Manual |
