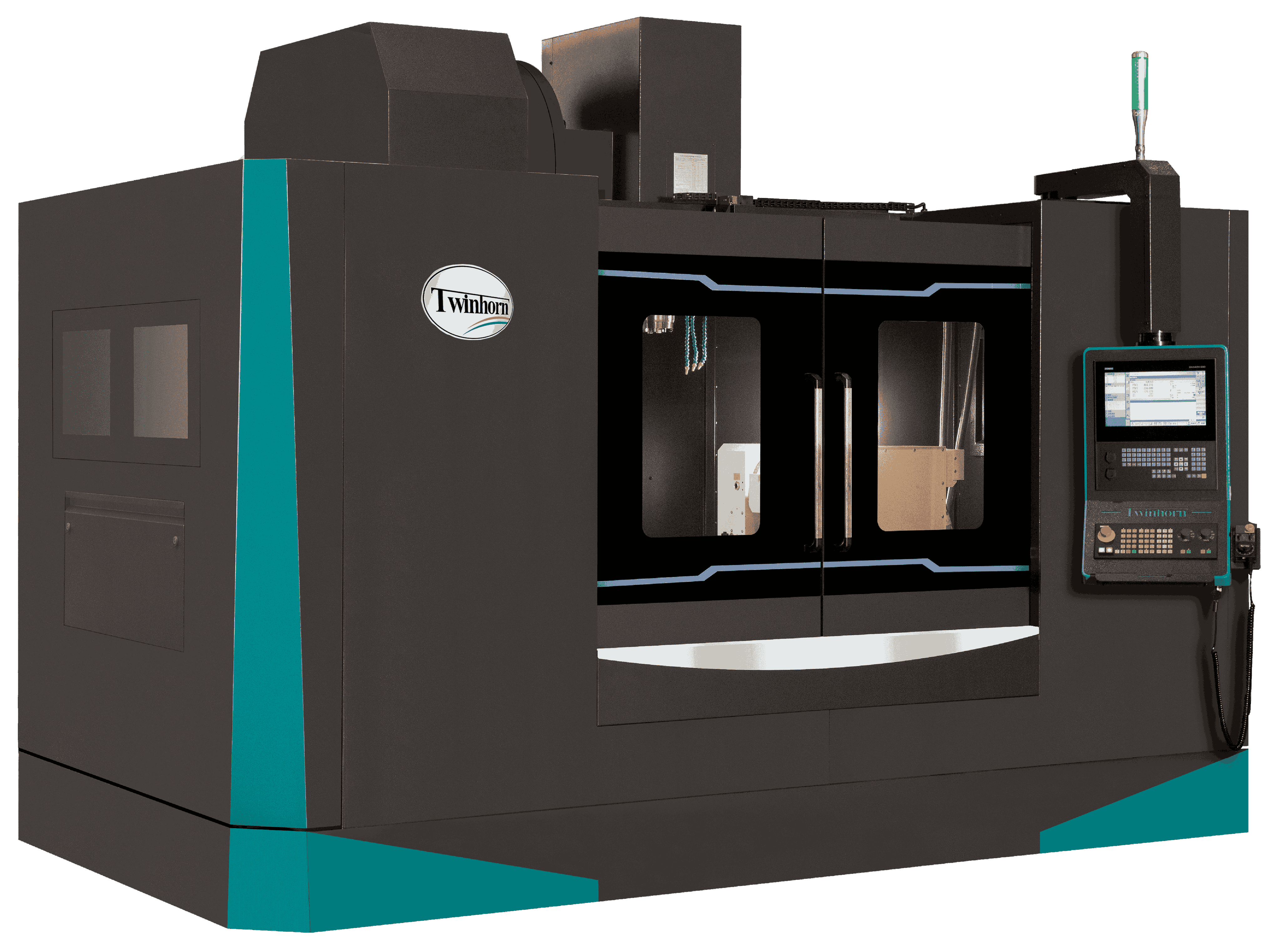

VTJ-1880
Category: CNC Vertical Machining Center
VTJ-1880 Documents
All new super rigid 4 guide ways base structure design.
Powerful, stable, accurate, & best heavy duty machining center.
- All major parts are built with high tensile Meehanite cast irons which provide outstanding wear-resistance and rigidity.
- Extra-widened column base design with ATC support using high standard FEA to provide superior stability during all kinds of applications
- Innovative extra-widened 4 box-way design base provides best support for machine dynamic accuracy.
- Gear Driven #50 spindle
- Extra size work table design with chip-coolant-collected cistern for easy operation set up.
| Specification | |
|---|---|
| Travel X Axis | (1800mm) 70.87" |
| Travel Y Axis | (800mm) 31.5" |
| Travel Z Axis | (800mm) 31.5" |
| Distance from Spindle to Column | (900mm) 35.43" |
| Distance from Spindle Nose to Table | (200-1000mm) 7.8" - 39.37" |
| Table Dimension (Length x Width) | (2000x800mm) 79" x 31" |
| Maximum Loading | (2200Kg) 4,840 lb |
| T-Slot Width | (18mm) 0.71" |
| Spindle Taper | CAT-50 |
| Spindle Motor | (18.5/22KW) 25/30HP |
| Spindle Speed (RPM) | 6000RPM |
| Spindle Driven | High Low Speed Gear Head |
| Rapid Traverse X, Y | (15000mm/min) 591ipm |
| Rapid Traverse Z | (12000mm/min) 472ipm |
| Cutting Feed Rate | (12000mm/min) 472ipm |
| Tool Selection | Shortest Path, Bi-Direction random type |
| Magazine Capacity | Arm Type 32 (Opt. 40) |
| Maximum Tool Dia. | Arm Type 32 (Opt. 40) |
| Maximum Tool Length | (350mm) 13.78" |
| Maximum Tool Weight | (15Kg) 33 lb |
| Floor Space L x W x H | (4400x2900x2900mm) 173"x114"x114" |
| Power Requirement | 220V, 3 Phase, 60Hz, 40KVA, 100Amp |
| Machine Weight | (15000Kg) 33,000 lb |
All Specification are subject to change without prior notice
| Standard Accessories | Optional Accessories |
|---|---|
| Spindle Gear Head with Hi-Lo Gear | Data Server 2 GB (DNC) |
| Spindle Oil Refrigeration Unit | Chain Type Chip Conveyor & Cart |
| Fanuc Oi-MF Plus, 10.4" Color LCD | Coolant Through Spindle 300PSI Pump |
| 2 MB Memory | High Pressure Coolant System |
| PCMCIA Slot for Memory Expansion | Arm Type 40 Tool ATC |
| Hardened Ground Box Ways on X, Y & Z | Arm Type 40 Tool ATC |
| Dual Spiral Type Chip Auger | Fanuc 31i |
| Powerful Chip Flush System | Fanuc 31i |
| Spindle Air Blast & Cutting Air Blast | Auto Tool Measuring System |
| Arm Type 32 Tool ATC | |
| Auto Lubrication System | |
| 4th Axis Interface Cable Ready | |
| Hand Held Coolant & Air Nozzle | |
| Fanuc & Machine Manual |
